The new module Collective protection systems generates the drawings of the collective protection systems of a job in CYPECAD.

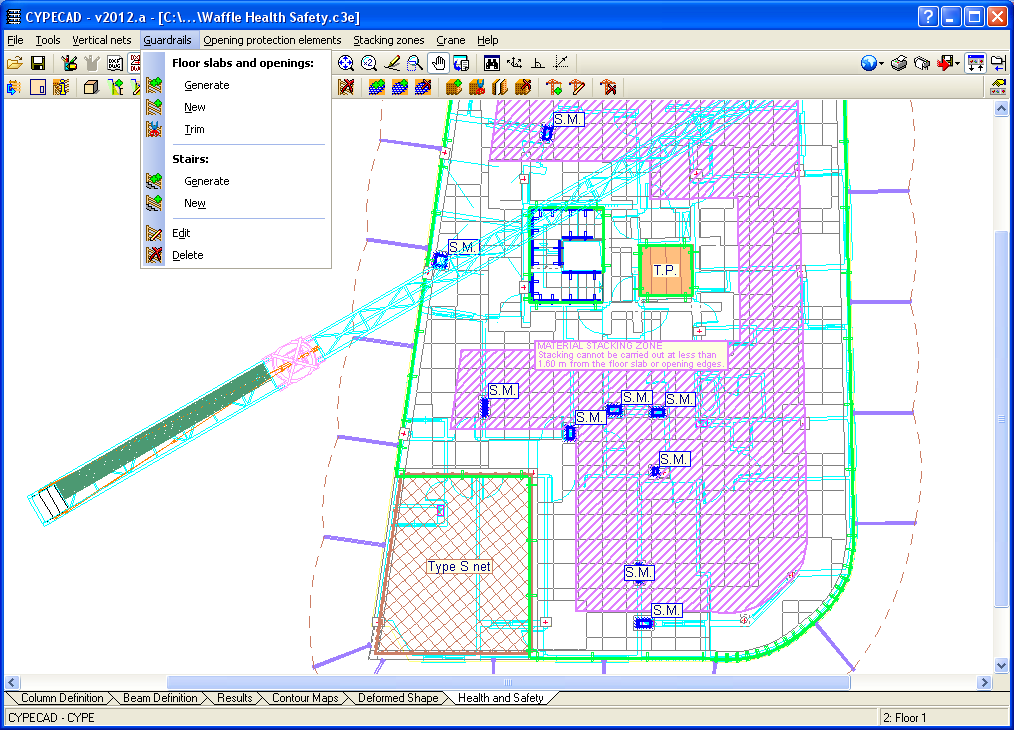

The 2012.a version of CYPECAD includes an extra tab at the bottom of the screen. Along with the other five tabs (Column Definition, Beam Definition, Results, Contour Maps and Deformed Shape), the Health and Safety tab has been implemented. Upon clicking on it, the user can include the following elements by selecting them from the top menus:
- System V vertical safety nets
- Guardrails
- Opening protection elements
- Stacking zones
- Cranes
More information on this new CYPECAD module can be found in the Collective protection systems page.
