Consumption

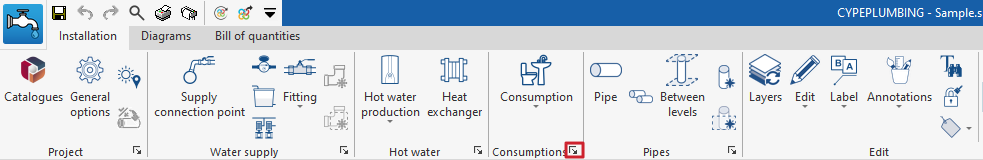

This is used to enter consumptions in the water supply system.

When entering or editing a consumption, the following parameters can be configured. Some parameters only appear if the "Simplified entry" option, which is accessed via "Calculation options" in the "General options", is deactivated:

• Consumption reference
  Selects the type of consumption by its reference. These types can be created and edited in the "Design and checks to be carried out" section of the "General options" of the "Project" group. The program also provides information on their "Reference on plan".
• General data
  Permite definir los datos generales del elemento. Algunos de estos valores se pueden bloquear o desbloquear. Si un valor está bloqueado, aUsed to define the general data of the element. Some of these values can be locked or unlocked. If a value is locked, it is not modified when updating the results and remains unchanged.
  • Cold water pressure (Lock/Unlock)
    Sets the cold water pressure in the consumption. This option appears in "Hydromixer" or "Cold water" type consumptions.
  • Hot water pressure (Lock/Unlock)
    Sets the hot water pressure in the consumption. This option appears in "Hydromixer" or "Cold water" type consumptions.
• 3D layout
  Sets the position and angle of the element. This section only appears when editing a previously entered element.
  • Position (x, y, z)
  • Angle
• Label (optional)
  Manages the information visible in the element's label.
  • Reference
• Bill of quantities
  Controls the generation of the element's bill of quantities using filters.
  • Consumption
• Consult checks
  Used to consult and list the checks carried out on the element. These checks can be activated, edited or deactivated from "Design and check options to be carried out", in the "General options" of the "Project" group.
