Options available in CYPELEC Distribution

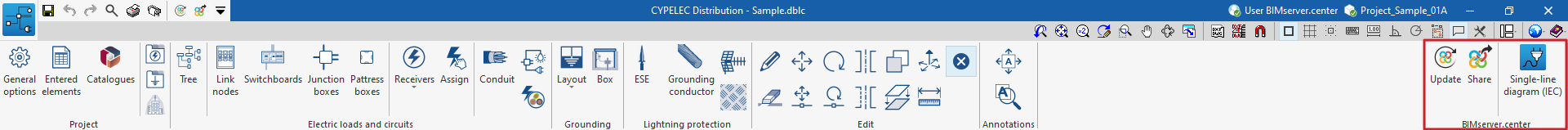

The "BIMserver.center" group in the main toolbar contains the features required to use CYPELEC Distribution together with other BIMserver.center tools.
Update

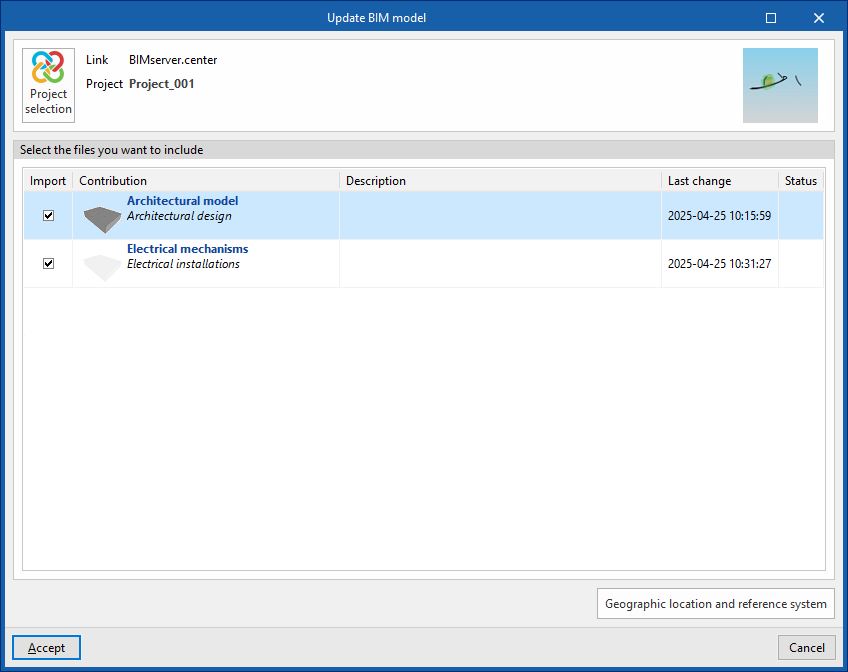

Information contained in models previously imported into the project can be updated or new models can be imported if desired.

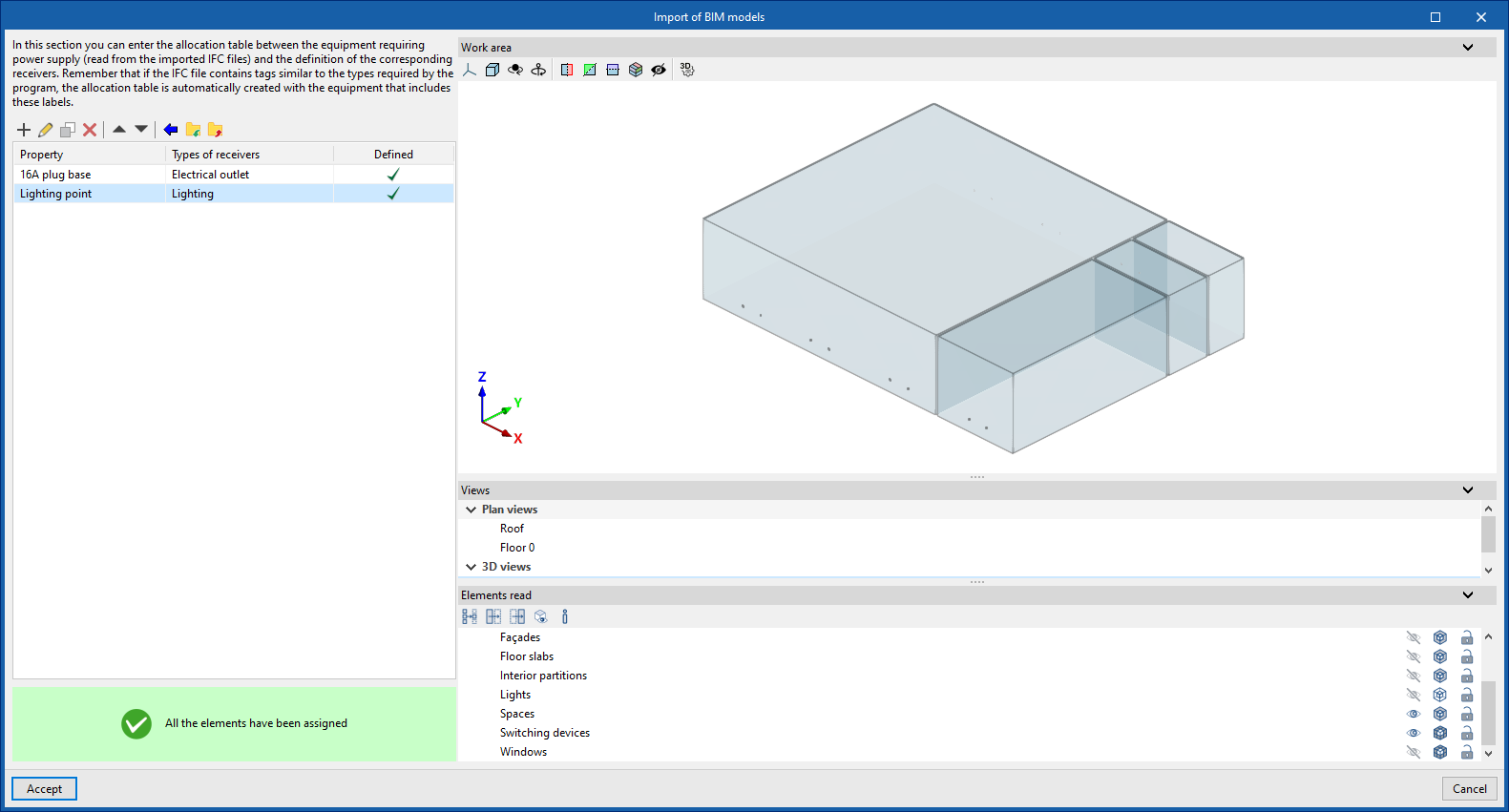

In the updating process, as in the process of creating a new job, the equipment requiring electrical supply can be read from the BIM model and assigned to one of the types of receivers defined in the project options. As a result, the program generates the receivers automatically or updates them according to the latest changes.
Share
Allows the information of the model developed with CYPELEC Distribution to be exported to BIMserver.center and shared with other users, including its three-dimensional representation and the system drawings.
During the export process, users can define information related to the identification of the files to be exported:
- Name
- Description
Direct connection with other programs

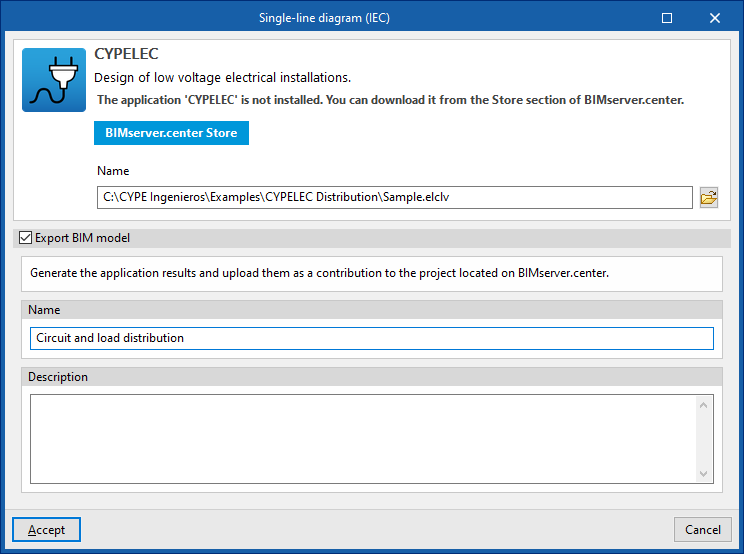

CYPELEC Distribution offers a direct connection option with Open BIM tools that allow further work. Through these options it is possible to send the CYPELEC Distribution BIM model to the following CYPELEC environments:
- CYPELEC Core
CYPELEC REBT (installation in Spanish)
CYPELEC RETIE (installation in Spanish)
CYPELEC NF (installation in French)
The different CYPELEC environments import the circuit distribution of CYPELEC Distribution electrical panels and subpanels to calculate the low voltage electrical system, generating the single-line diagram and checking and designing the conductor cross-sections and the necessary protection devices.
